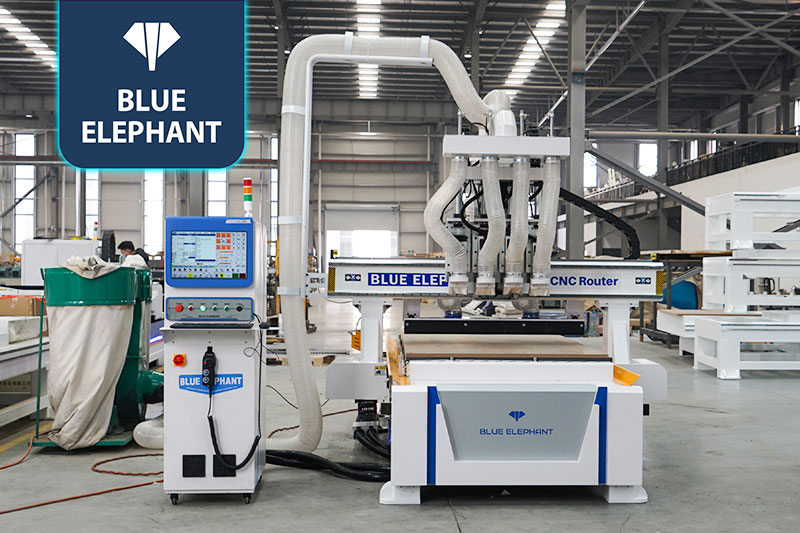

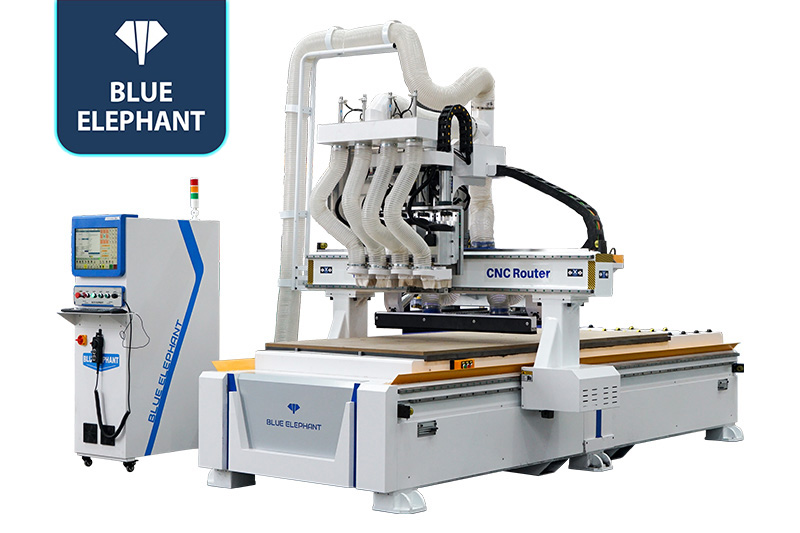

4×8 Multi-head Wood CNC Router with 4 Spindles
☆With the advantages of high cost performance, low cost， and high production efficiency, this 1325 multi spindle CNC router is deeply loved by users all over the world.
CNC Router Machines Video
features
- This is a newly designed multi-spindle CNC router with four spindles, which better meets the requirements of users.
- Using Taiwan LNC 2200 controller with screen, mouse, keyboard, and handwheel, very easy to operate.
- With Japanese SHIMPO reducer, it can extend the machine lifespan.
Parameters
| Model | ELECNC1325-4S |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2000*4000mm,etc |
| Z axis travel | 200mm, option:300mm,400mm,500mm,600mm,etc |

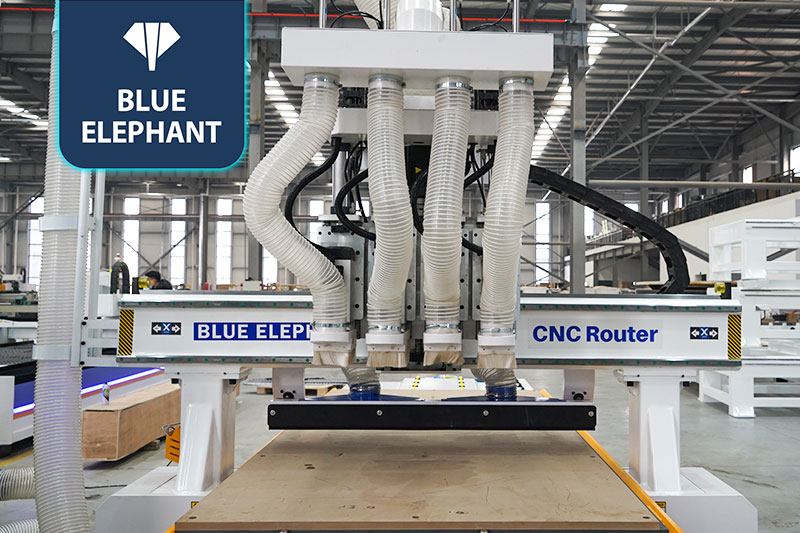

| Spindle type | 4.5kw HQD air cooling spindle×2set, 18000RPM 6kw HQD air cooling spindle×2set, 18000RPM |
| Inverter type | 7.5kw Taiwan DELTA |
| Control system | Taiwan LNC 2200 controller, with screen, mouse, keyboard, handwheel |
| Driving system | 850W Leadshine servo motors and drivers |
| Reducer | Japanese SHIMPO reducer |
| Machine structure | Heavy duty body more thicker and stronger |
| Work table | Vacuum work table |
| Positioning cylinder | X axis 2pcs; Y axis 3pcs |
| Linear guide | Taiwan Linear guide 25# |

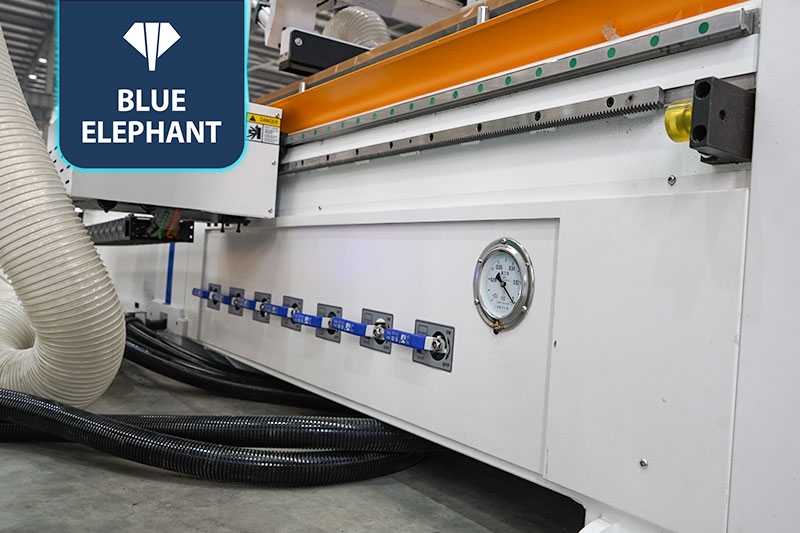

| Transmission | X, Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam,Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.
