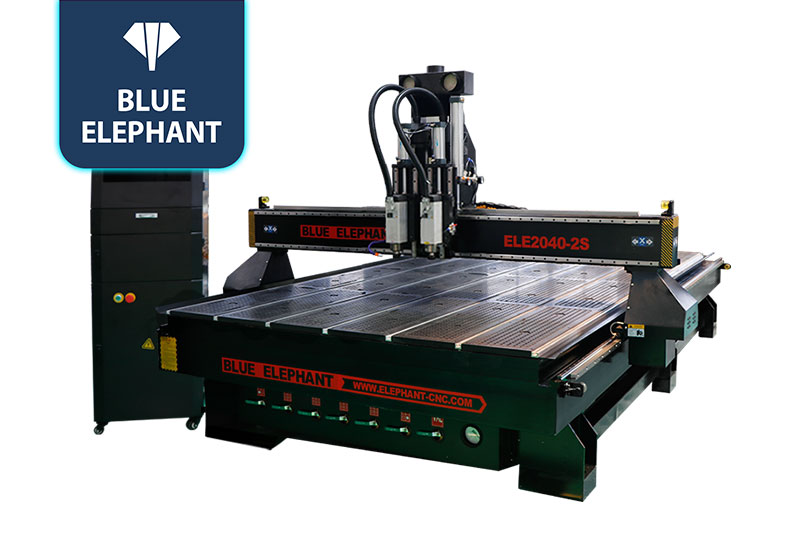

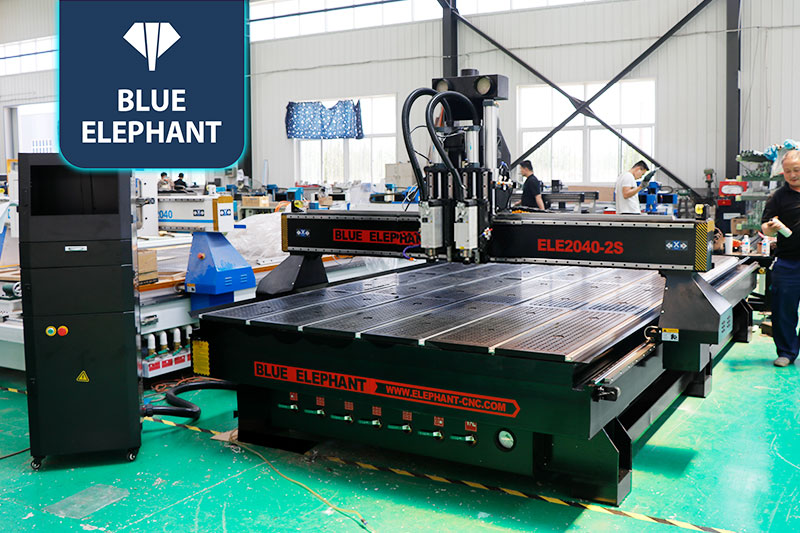

2040 Large Two Processes CNC Wood Router for Price in Australia
☆It is one of the most popular multi-head CNC router for realizing relief sculpture and 3D engraving. And two spindles can work one by one, which is more convenient to change the tool to engrave or cut wooden furniture.
CNC Router Machines Video
features
- Adopts new type thicker and bigger heavy duty welded frame and gantry, it can ensure good stability and processing effects.
- Using the large customized working area of 2000*4000mm, it can better cut and engrave big workpieces.
- With two independent 3.5kw HQD air cooling spindles, it can faster realize prodution processing.
Parameters
| Description | Parameter |
| Inverter | 3.7kw FULING Inverter |
| X,Y,Z Working Area | 2000×4000*200mm |
| Table Surface | T-slot & vacuum working Table |
| X, Y Structure | china #25 linear guide rail,helical rack gear |
| Z Structure | Taiwan TBI Ball Screw |
| Spindle Power | 3.5kw HQD Air Cooling Spindle*2 |

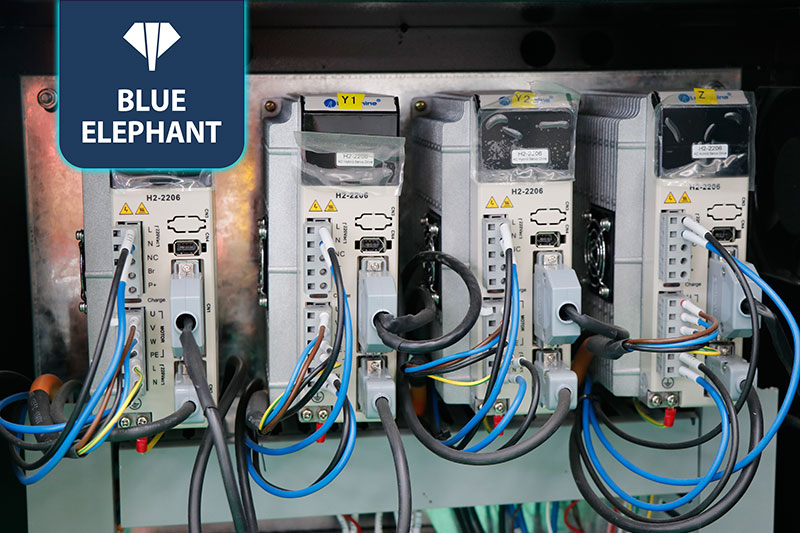

| Drive Motors | 750W Leadshine Servo Motor&driver |
| Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
| Command Language | G Code |
| Operating System | PM95A-3L control system |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Vacuum pump | 7.5kw water circulation vacuum pump |
| Software Compatibility | Type3/UcancameV9 Software |
| Dust Collector | 3.0kw Dust Collector*2bags |
| Running Environment Temperature | 0 – 45 Centigrade |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Mold industry: wood mold, foam mold and metal mold. Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument.
Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
