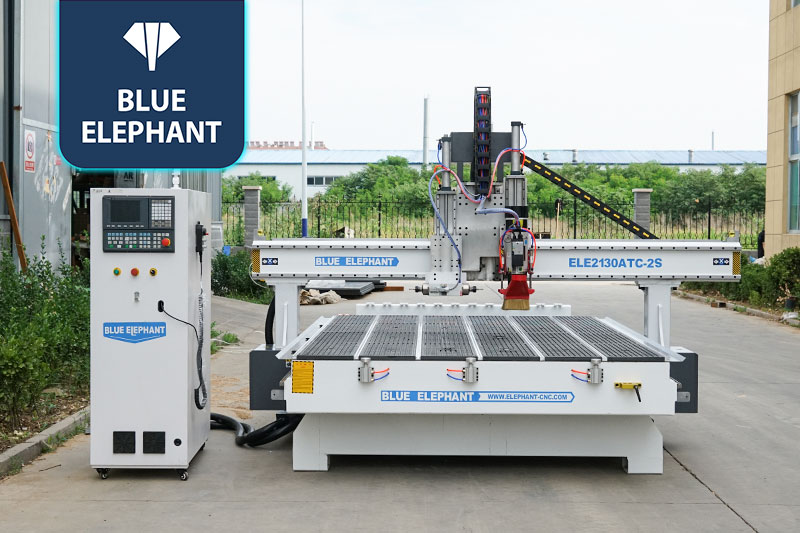

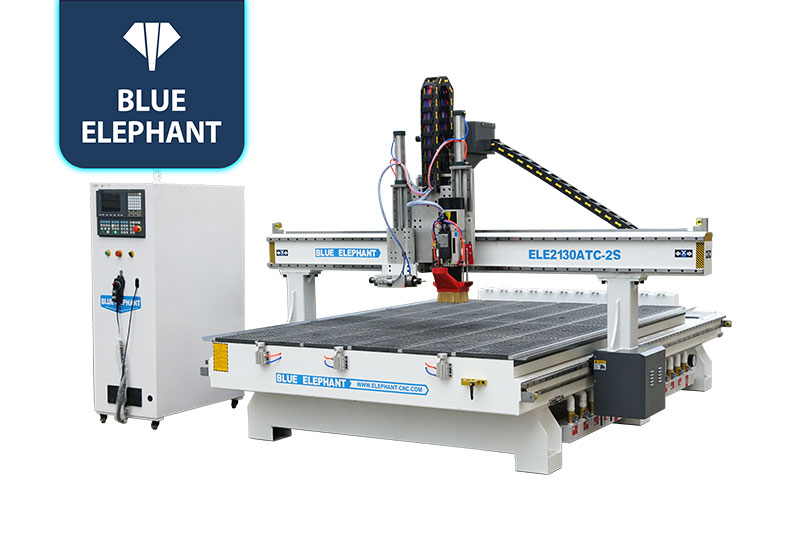

Large 2130 Double Head ATC CNC Router for Sale
☆This is an automatic tool changer engraving machine with two spindles. It is suitable for large production volume and high processing accuracy requirements.
CNC Router Machines Video
features
- It has the advantages of fast speed, high production efficiency, and good processing quality.
- The linear tool magazine with 8pcs can automatically and fast change different tools to realize different cutting and engraving.

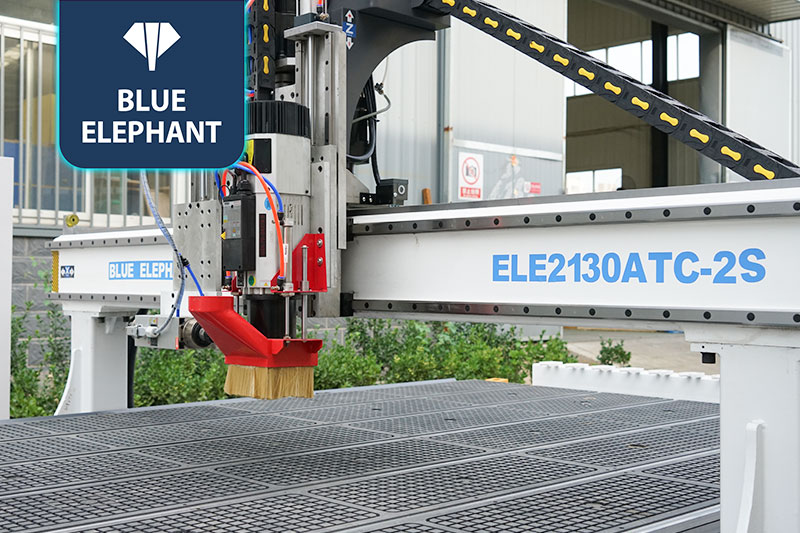

- Adopts 9kw HQD air cooling spindle and 3.5kw horizontal changsheng air cooling spindle, it can process more complex CNC projects.
Parameters
| Model | ELECNC2130 ATC |
| X,Y axis travel | 2100x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm,500mm, 600mm, etc |
| Spindle type | 9kw HQD air cooling spindle 3.5kw changsheng air cooling spindlein horizontal |
| Inverter type | 11kw Fuling inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer 8pcs Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 60WE controller, option：LNC MW2200 |
| Driving system | 850W Japan Yaskawa Servo Motor & driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

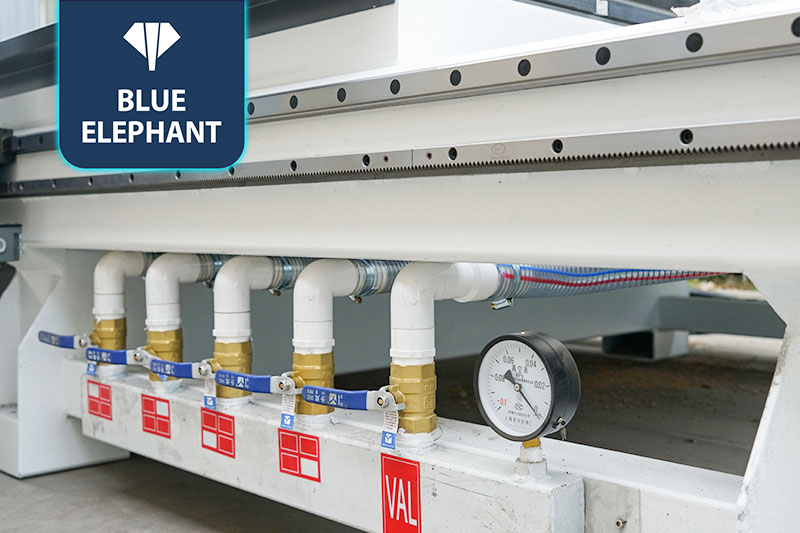

| Work table | T-slot & vacuum work table option：aluminum working table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool sensor | Automatic tool setting |
| Cables | Germany Igus cables with CE certificate |
| Compatible software | Artcam, Aspire software |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-10m/min |
| Re-positioning accuracy | ±0.01mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.1mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.
