Best Wood Auto Edge Banding Machine in Ethiopia, Norway, Sri Lanka

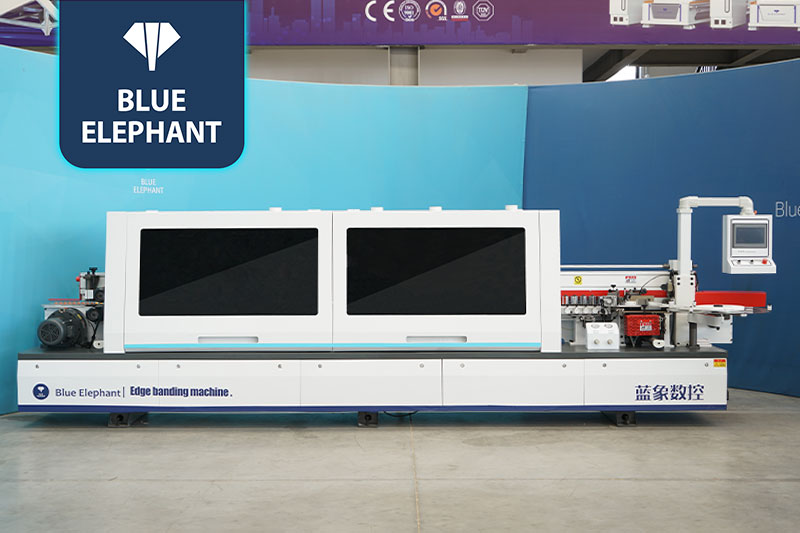

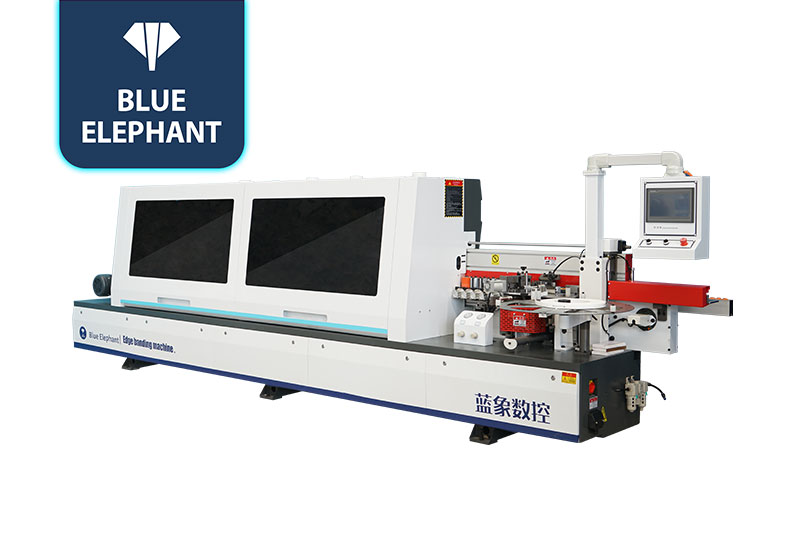

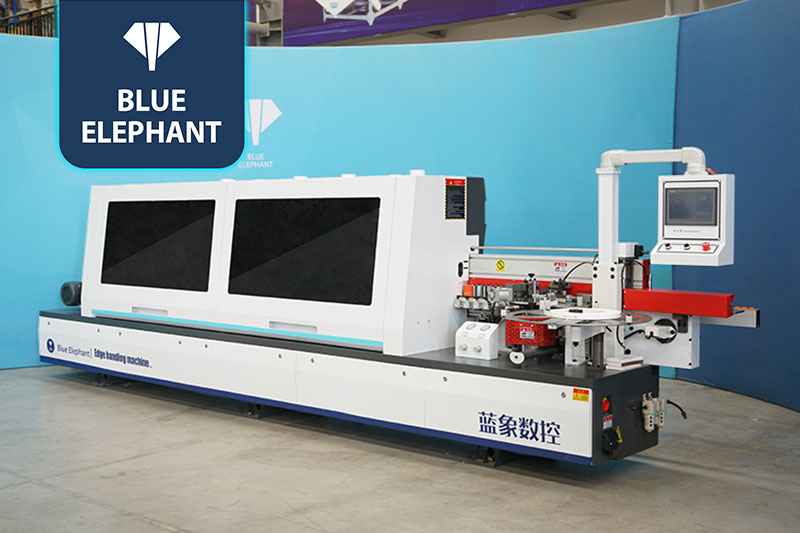

☆This E-70A bander machine is added with cutter pneumatic adjustment function. Therefore, it can realize multiple functions automatically and quickly, such as edge banding, end cutting, rough and fine trimming, tracking and corner rounding, scraping, polishing, etc.
Edge Banding Machines Video
features
- Provided with PUR glue, it has the advantages of excellent heat resistance, cold resistance, water vapor resistance, chemical resistance, and solvent resistance.
- It also has additional cleaning function, which can remove the residual glue from the banding edges to make the edges more smooth.
- Adopts an industry-leading touchscreen, it has the features of friendly man-machine interface and quick response.
Parameters
| Model | E-70A |
| Overall size | 5840x970x1800mm |
| Total power | 12kW |
| Feed speed | 15-23m/min |
| Electric lifting | 0.37kW |
| Panel Thickness | 10-60mm |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Edge band thickness | 0.4-3mm |
| Working pressure | 0.6Mpa |
| Voltage | 380V, 50Hz, 3PH Optional: 220V 3PH; 220V 1PH |
Application
Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
