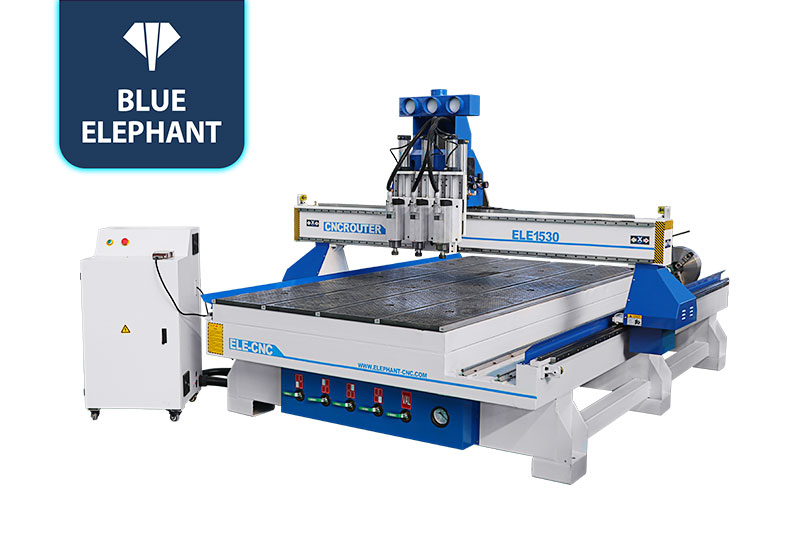

1530 Multi Spindles CNC Router for Sale in Southampton, U.K.
☆Equipped with three spindles, t can realize some same function as the ATC CNC router. And it is the best choice for users with large production volume and limited budget.
CNC Router Machines Video
features

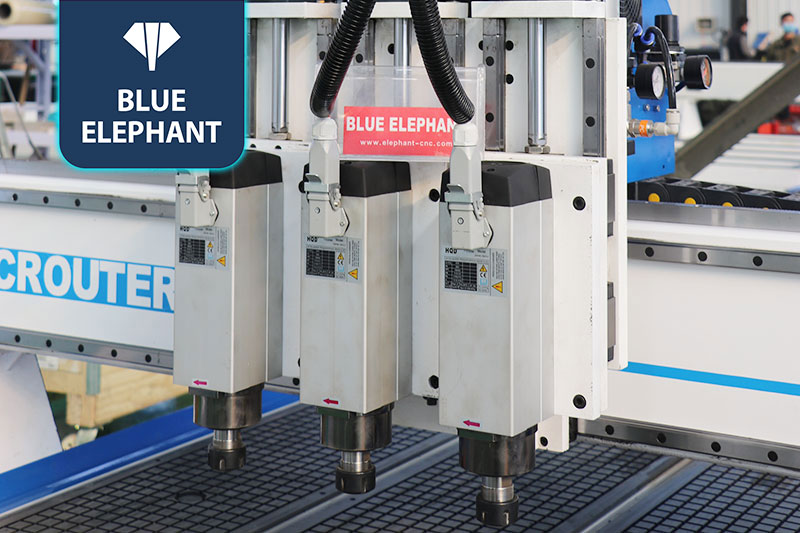

- Adopts three 3kw air cooling spindles, it can twice the processing speed of the ordinary wood cutting machine.
- Using the stepper FL118 motor and drivers, it can ensure high quality and stability. If you want a 850w Japan Yaskawa servo, it is ok.

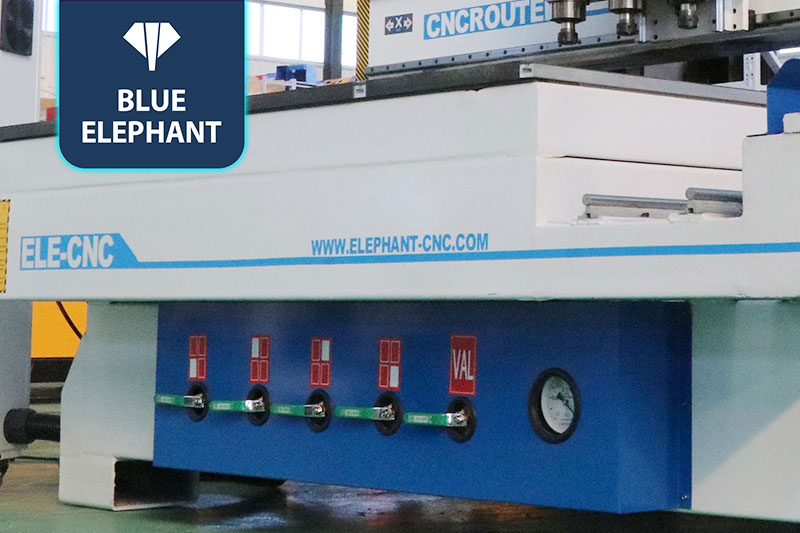

- The Vacuum & T-slot work table has the features of strong adsorption, which can firmly fix the material and prevent it from moving.
Parameters
| Model | ELECNC1530-3S |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 3x3kw air cooling spindle, ER20 |
| Inverter type | 3.7kw |

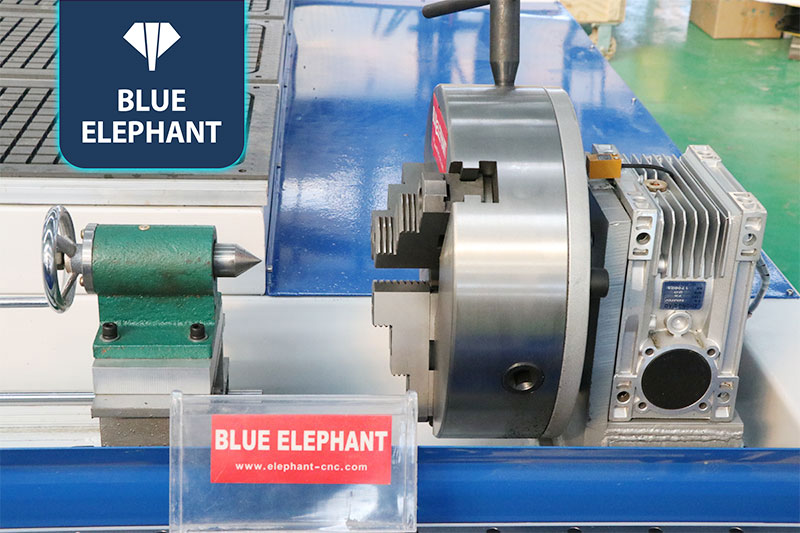

| Rotary device | 300mm diameter rotary device |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A123, option: Taiwan Syntec |
| Driving system | Stepper FL118 motor and drivers, option: 850w Japan Yaskawa servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Vacuum & T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
