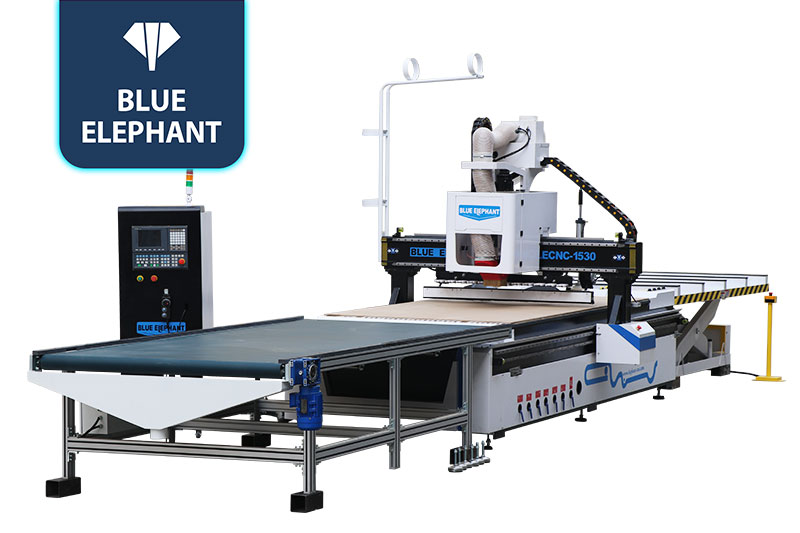

Best Automatic Nesting CNC Wood Machine for Furniture Production Lin
☆This auto loading and unloading nesting CNC machine is an ideal choice for medium and large-scale panel furniture factories. It can process multiple wood materials, such as MDF, plywood, chipboard, particleboard, melamine, PVC, etc.
Features
- It is equipped with a linear tool magazine mounted under the gantry, which reduces tool changing time and saves human labor.

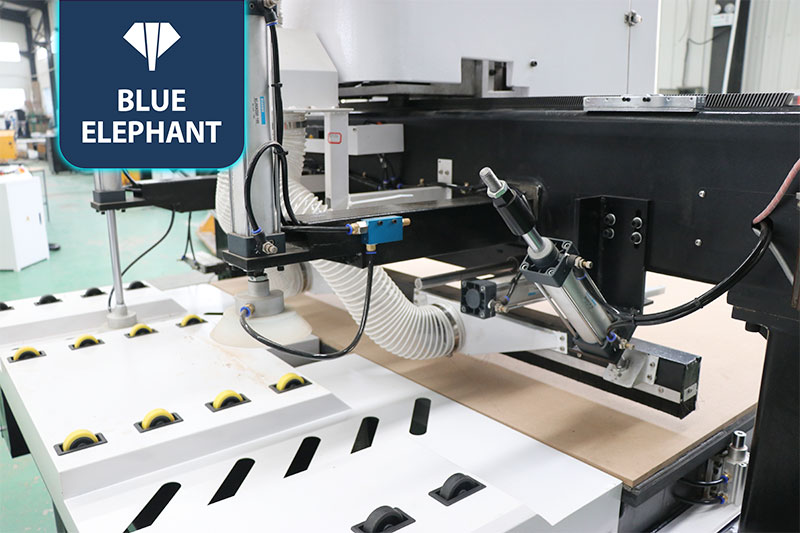

- The automatic loading device and positioning mechanism ensure high work efficiency and excellent machining accuracy.
- Specifications of this nesting machine can be customized to meet customers’ specific processing demands.
Parameters
| Model; | 1530 5×10 Nesting CNC Machine for Wooden Furniture |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm; option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 9.0kw ATC Spindle |
| Inverter type | 11kw Delta |
| Rotary device | Option: Rotary device |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ER32; collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller; option: Taiwan LNC |
| Driving system | Japan Yaskawa servo 850W Motor and 1000w driver Option: 1300W Leadshine servo motor and servo drivers |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Worktable | Aluminum T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X3, Y4) |
| Linear guide | #25 Taiwan Linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Manual; tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command Language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
