Single Table 5 Axis CNC Machining Center at Cost in Italy, Canada

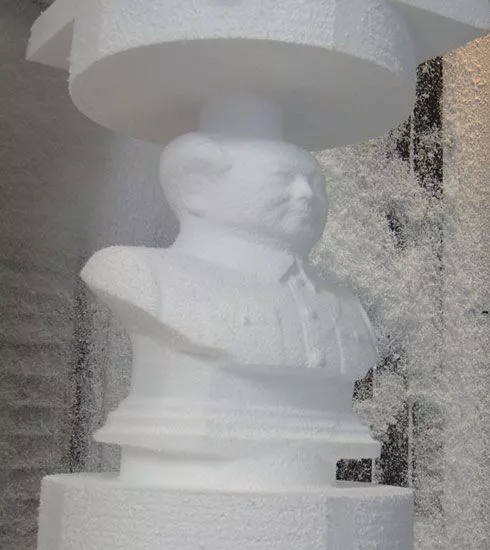

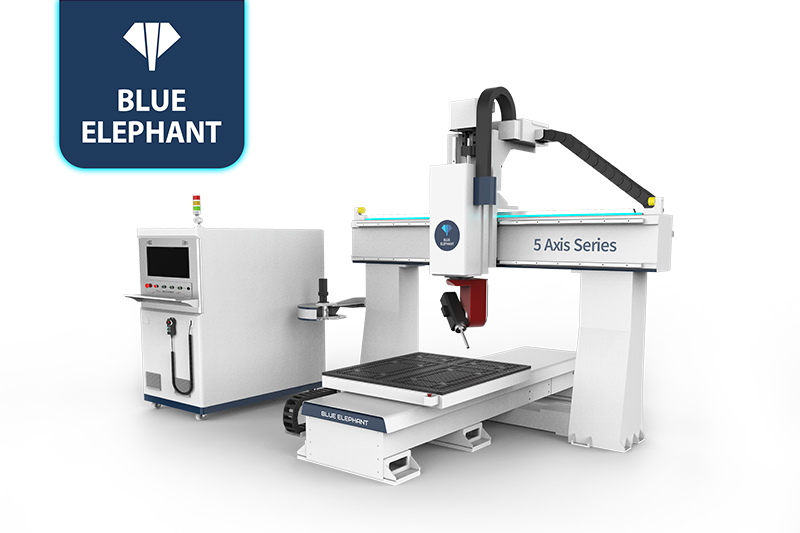

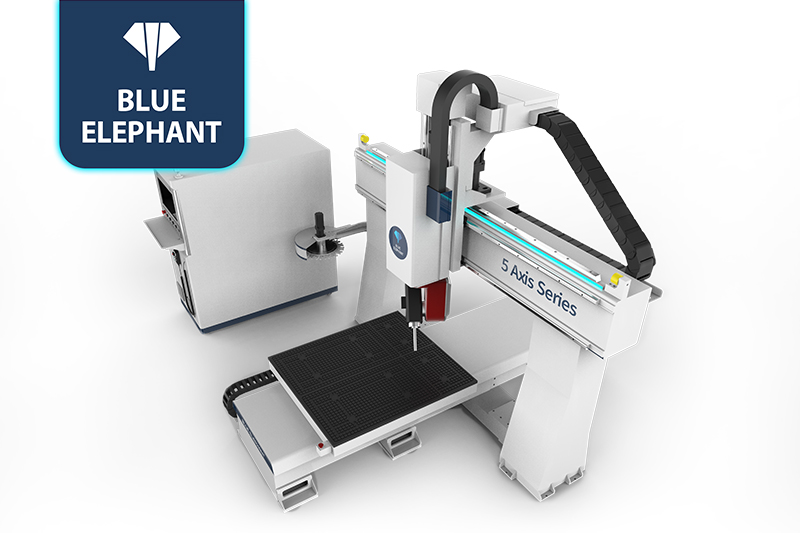

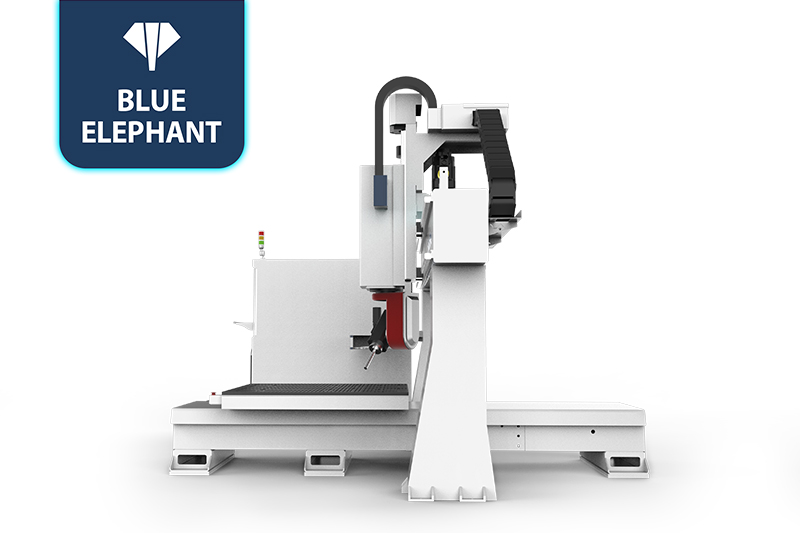

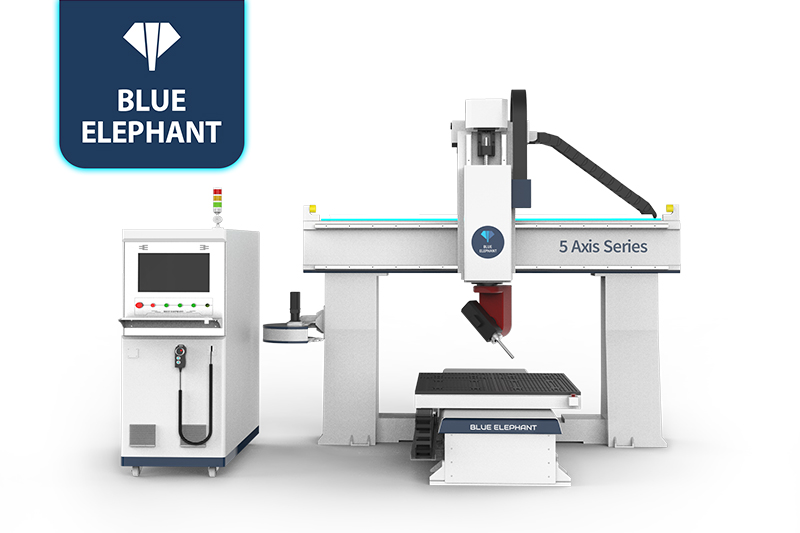

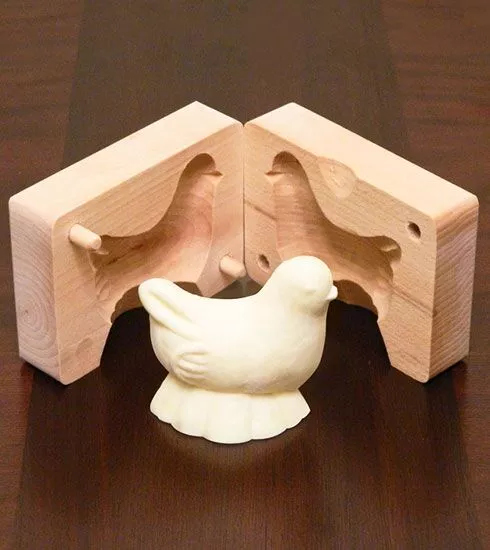

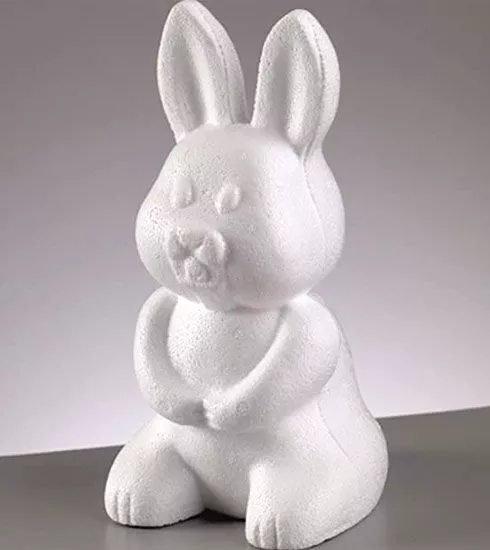

☆This is an entry-level 5 axis CNC machining center for procesiing 3D woodworking CNC projects. So it is good at carving and engraving various 3D molds, statues, etc. And it is equipped with a fixed gantry beam and a movable small worktable.
CNC Router Machines Video
Features
- The small worktable can move back and forth, which ensures that all side surfaces can be processed.
- It can carve and engrave multiple non-metal materials and soft metal materials.
- Adopt high-quality or world-famous CNC parts to guarantee smooth operation and high processing quality.
- With a carousel tool changer magazine, it can change tools automatically to increase work efficiency.
Parameters
| Model | ELECNC-1212 |
| X,Y axis travel | 1200x1200mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc |
| Z axis travel | 800mm |
| Spindle type | 10KW Hiteco water cooling ATC spindle |
| Inverter type | 15kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | HSK tool holder |
| Control system | Syntec 610MA-E5 |
| Driving system | 1300W Japan YASKAWA servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan #30 Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan TBI 3210/4040 ball screw Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Customized professional 5 axis software |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
Application
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.

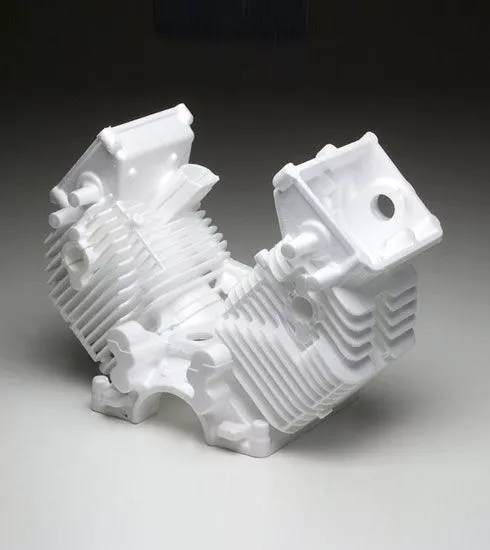

In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
