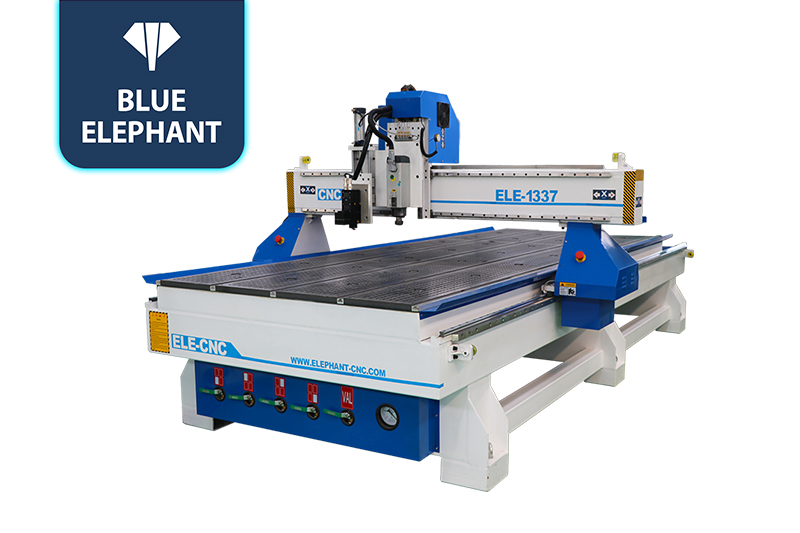

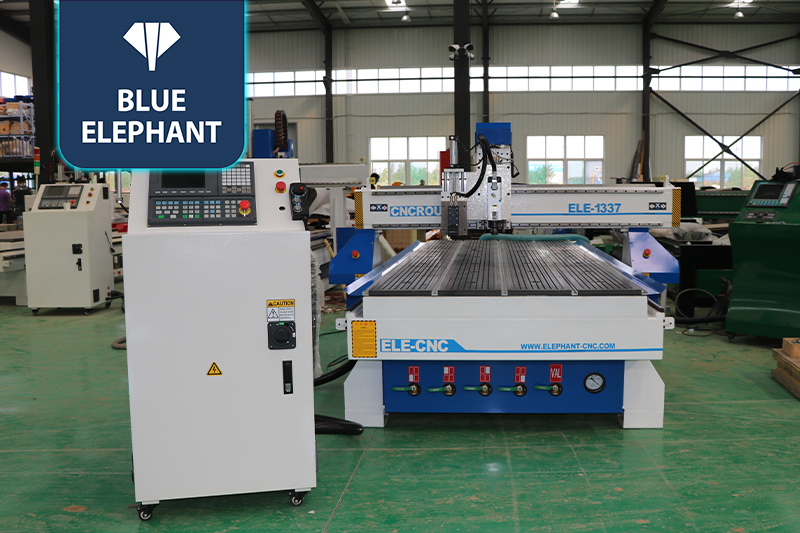

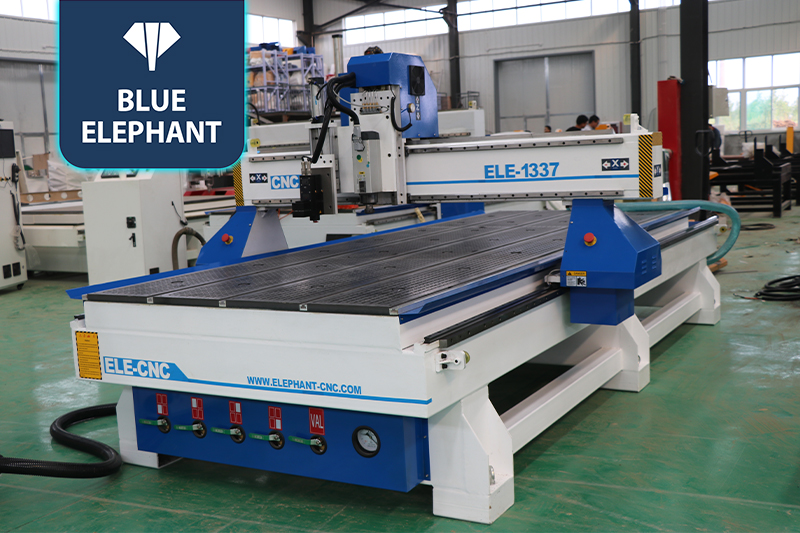

Cheap Fabric Digital Cutting Machine for Sale
☆This CNC oscillating knife cutting machine is good at cutting and engraving soft materials such as leather, carboard, rubber, etc. With no heat and smock generating, CNC knife cutting is safer.
Digital Cutting Machines Video
features
- Heavy duty body with quenching treatment can ensure good stability.

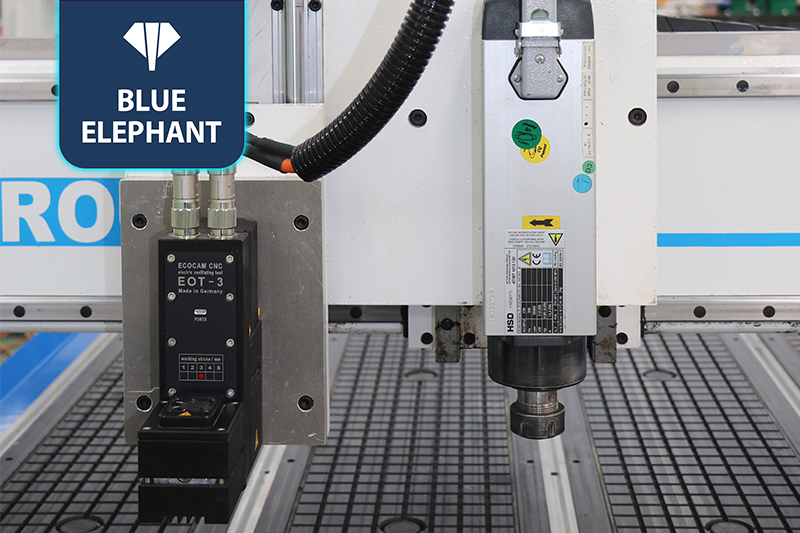

- EOT-3 oscillating knife head can process wood, plywood, acrylic, soft metal, foam, etc.
- Please notice that all the specifications can be customized according to your requirements.
Parameters
| Model | ELECNC1337 |
| X,Y axis travel | 1300x3700mm, optional: 1300*250mm, 1500*3000mm; 2100*3000mm, etc. |
| Z axis travel | 200mm, optional: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3kw Italian HSD air cooling spindle, 18000rpm |
| Inverter type | 3.7kw |
| Oscillation knife | Germany EOT-3 oscillation tangential knife |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | Servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
