4 Axis ATC CNC Wood Carving Machine for Sale in Romania, Saudi Arabia at Cost Price

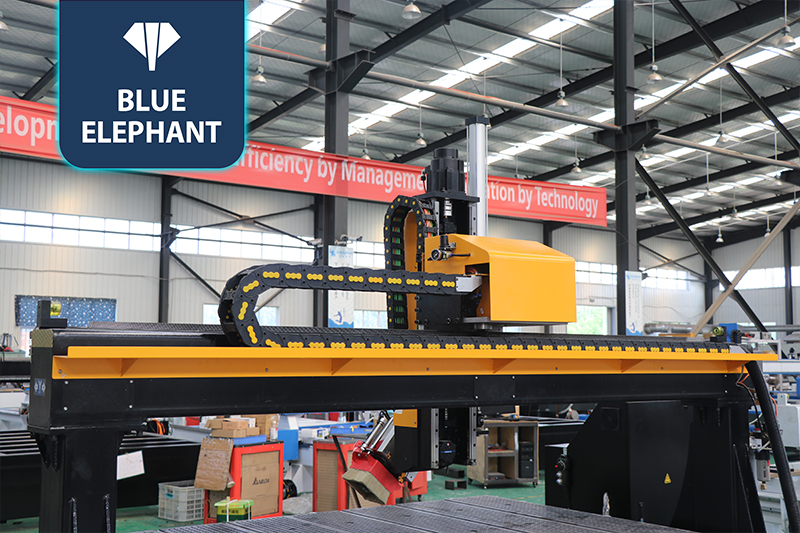

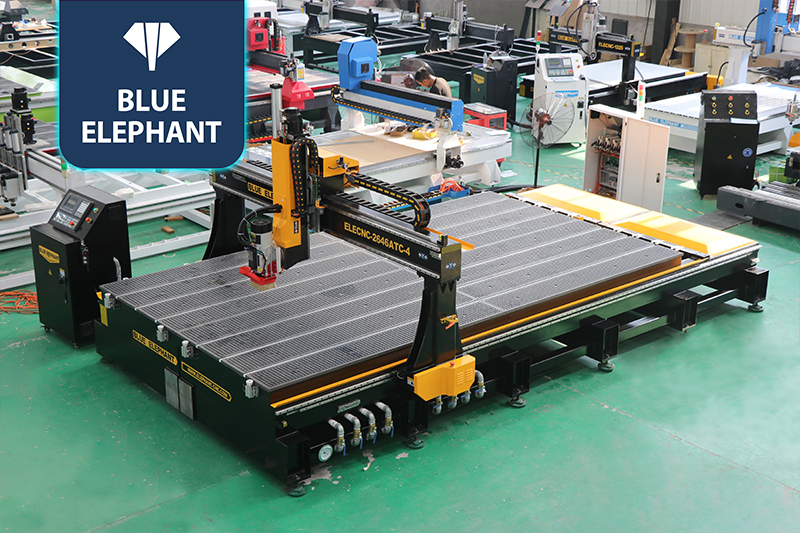

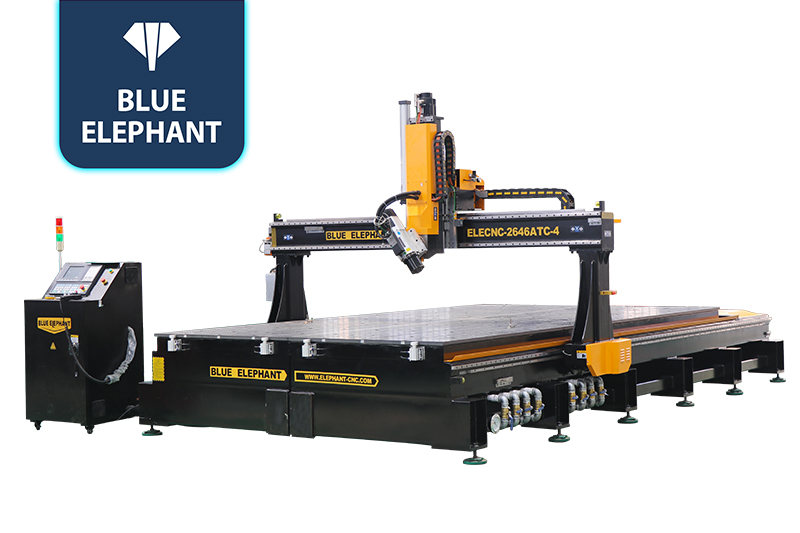

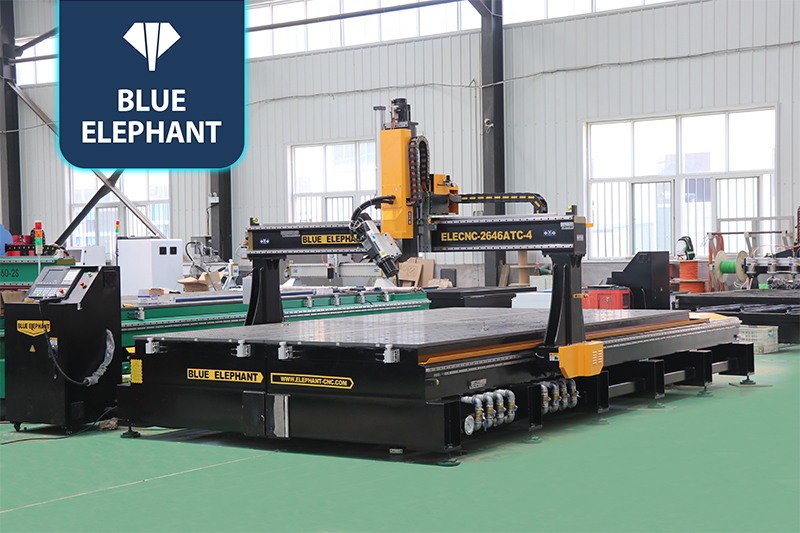

☆With a rotary spindle and a large working size, this 4 axis CNC wood router can process large and thick wood products, like molds, statues, boats, crafts, etc. It is also provided with a linear tool magazine to realize the automatic tool exchanging function to reduce human labor and costs.
4 Axis CNC Router Machines Video
Features
- The large working size of 2600x4600x500mm and its rotary spindle allows the 4 axis CNC machine to cut large-sized wooden panels and carve thick and big 3D workpieces.
- The machine structure has strong rigidity and high strength, free of deformation and shaking during long-term high-speed operation.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| Model | ELECNC2646ATC-4A |
| X,Y axis travel | 2600x4600mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 500mm, option: 400mm, 600mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ER32 |
| Inverter type | 11kw |
| Rotary device | Option: Rotary device |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller, option：Taiwan LNC |
| Driving system | 1300W Leadshine servo motor and servo drivers. option: Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table |
| Positioning cylinder | Optional: 7pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

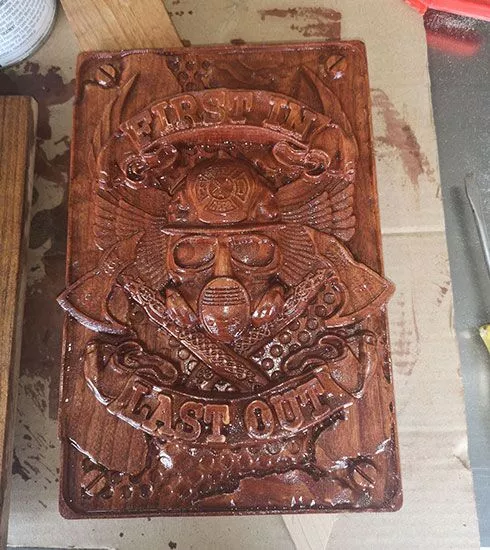

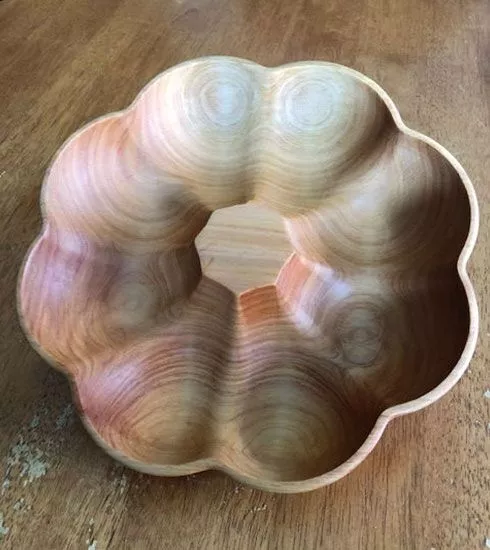

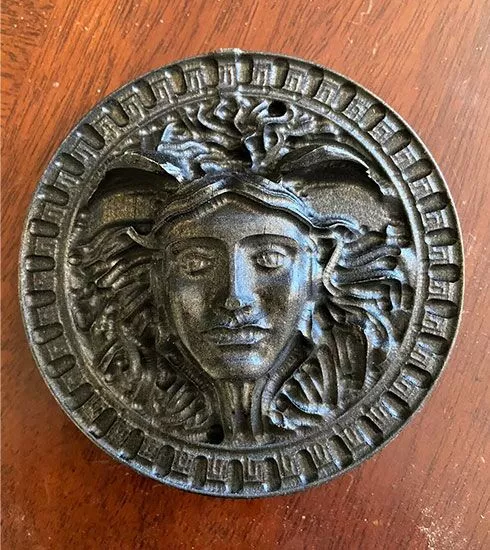

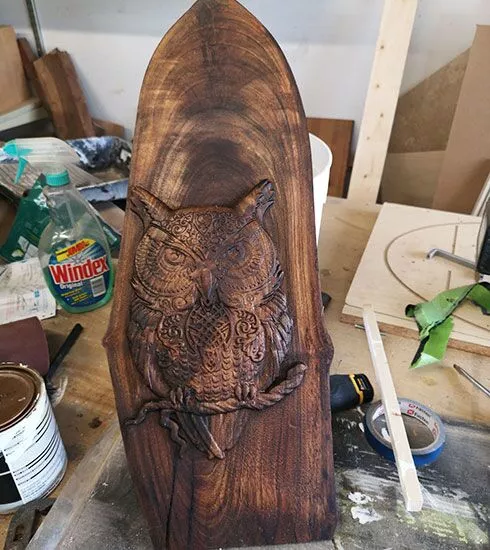

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
