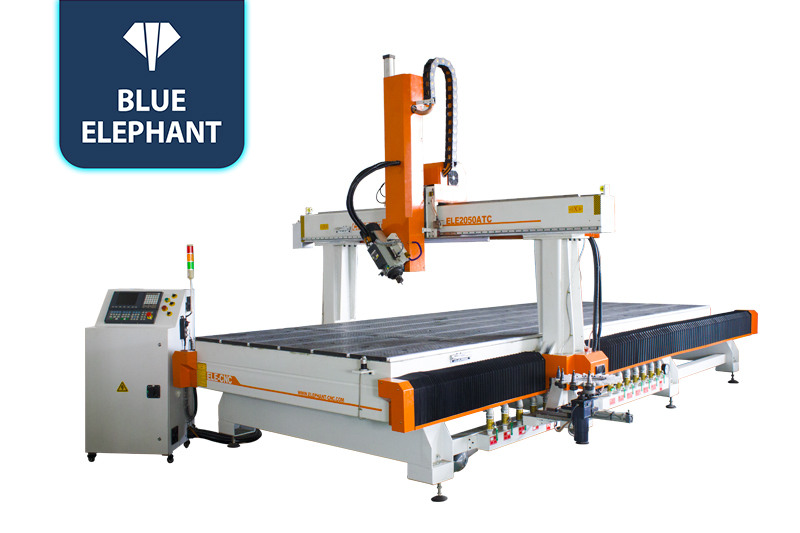

Large Format 4 Axis CNC Woodworking Machine for 3D Carving
☆The custom ATC 4 axis CNC router machine for sale has a large working size to process large-sized wooden panels for custom or personalized furniture production. It can exchange tools automatically to realize a variety of complicated and delicate 3D designs.
4 Axis CNC Router Machines Video

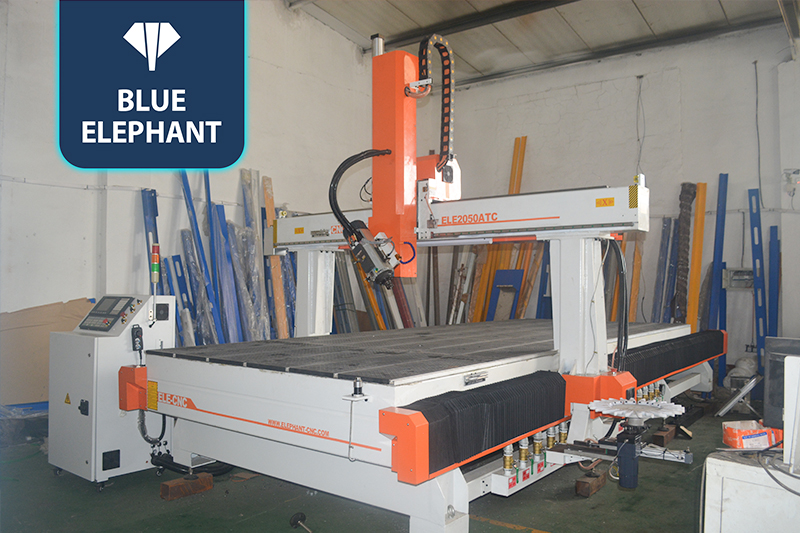

Features
- The large working size of 2000x5000x600mm can process most large-format wooden panels and thick and tall wood and foam workpieces.

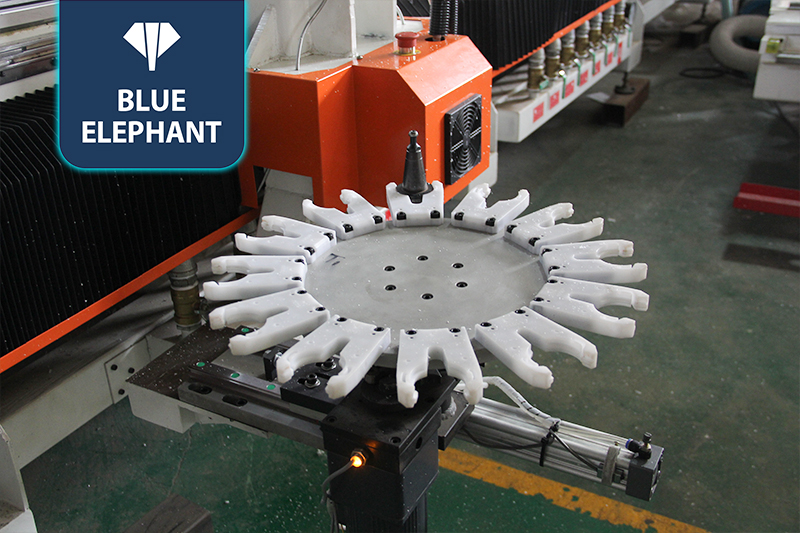

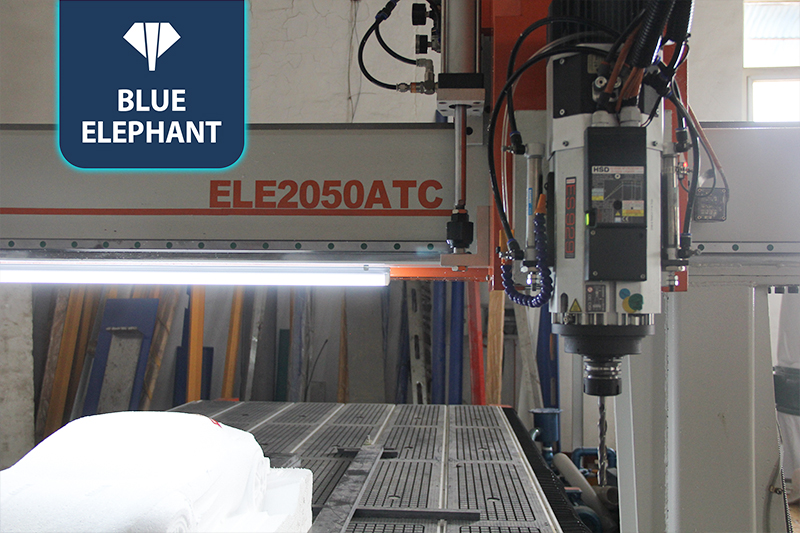

- It is equipped with a carousel tool magazine on the side of the machine bed to realize the automatic tool changing function. Users can also choose a linear type tool magazine.
- It adopts HIWIN linear square guide rails which have a large bearing capacity, stable operation, high precision, and long service life.
Parameters
| Model | ELECNC2050 4 Axis ATC |
| X,Y axis travel | 2000x5000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 600mm, option: 400mm, 500mm, 700mmetc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |

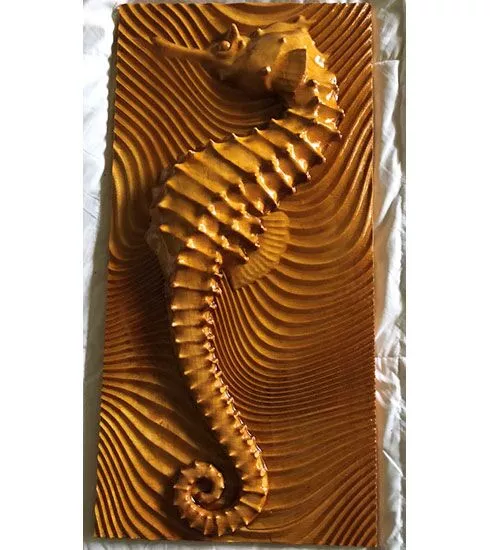

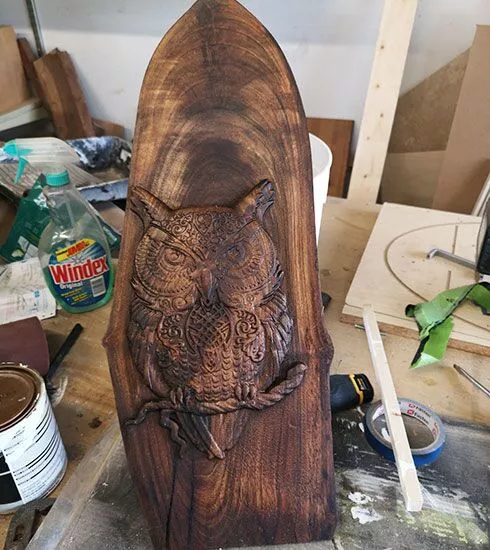

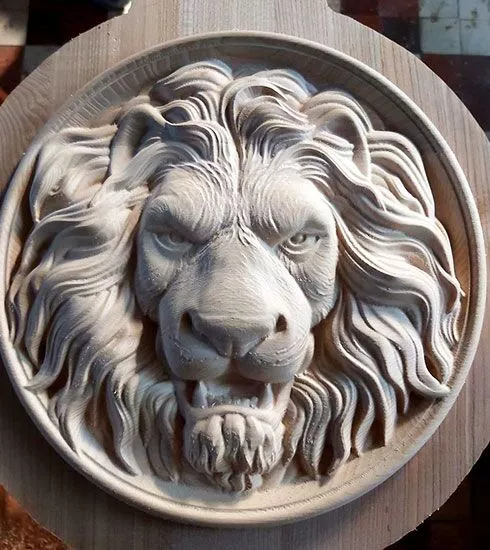

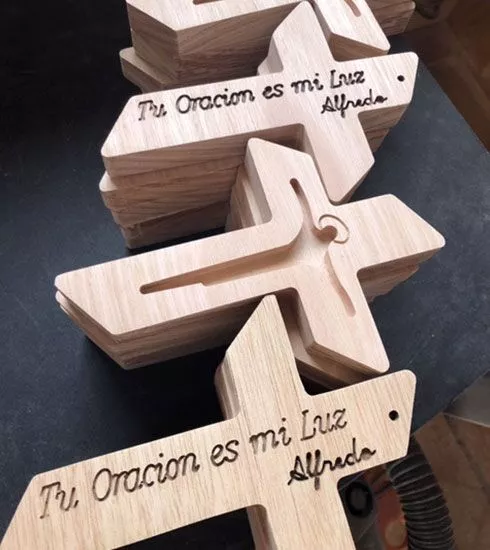

Application
4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
