New Design ATC Wood CNC Router With Drill Bank

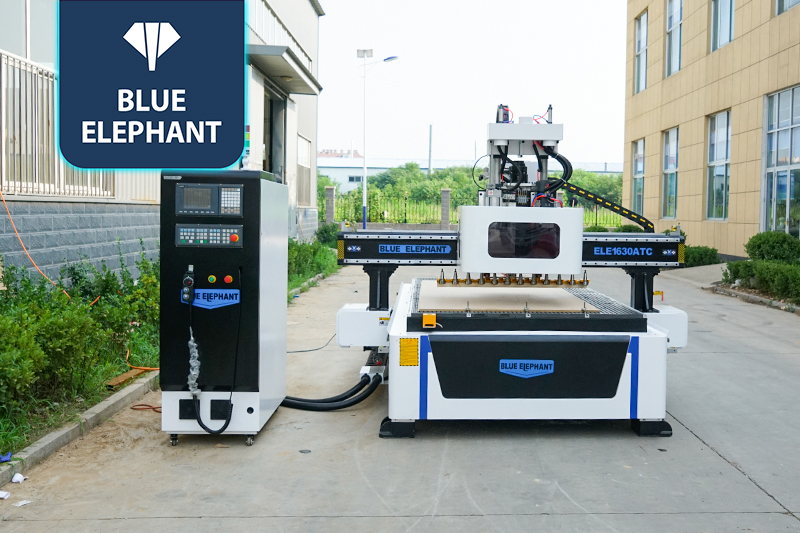

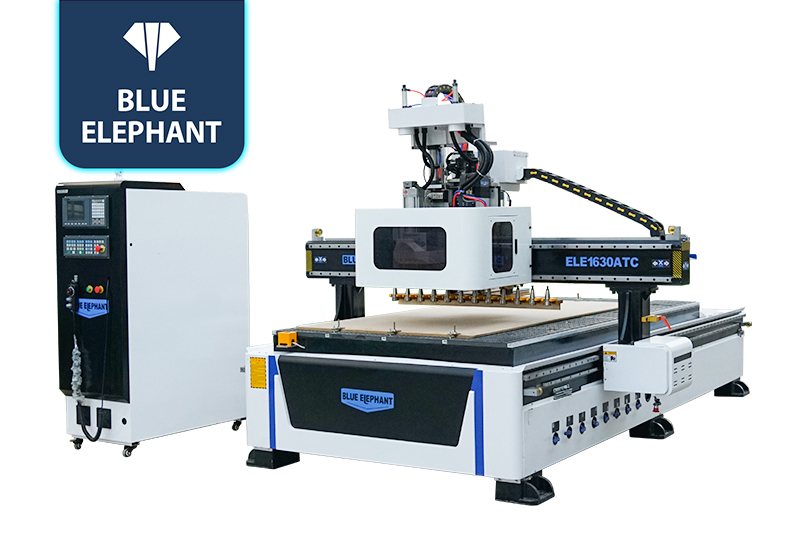

☆This is a custom CNC router machine with an automatic tool changer and a drill magazine for producing panel furniture. It is equipped with a high-power spindle and a high precision YASKAWA servo motor to ensure smooth operation.
ATC CNC Router Machines Video
Features
- The machine has a working size of 1600x3000x150mm, which perfectly meets the needs of our customers.
- It has a drill bank with 9 vertical drills to automate various drilling tasks and can save labor.
- It has strong compatibility with various CAD and CAM software, such as Type3, Artcam, Castmate, Ventech, Fusion360, etc.
Parameters
| Items | Parameter |
| Model | ELECNC-1630ATC |
| Working area | 1600*3000*150 mm |

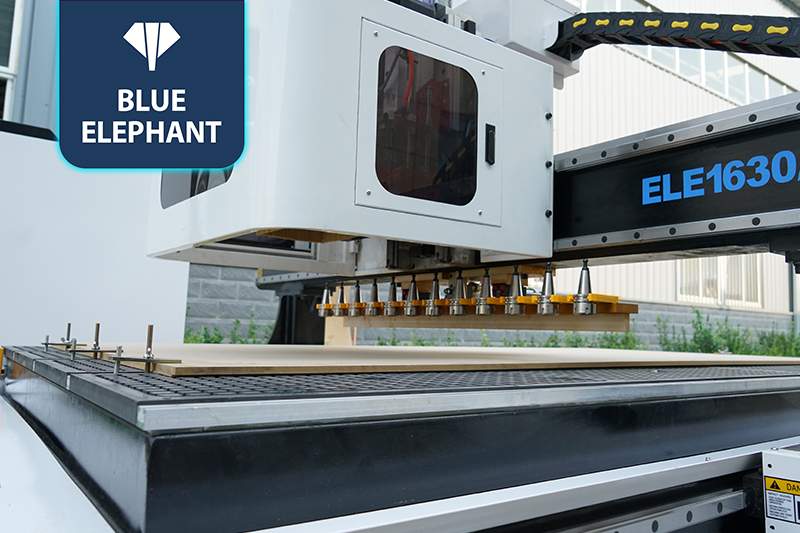

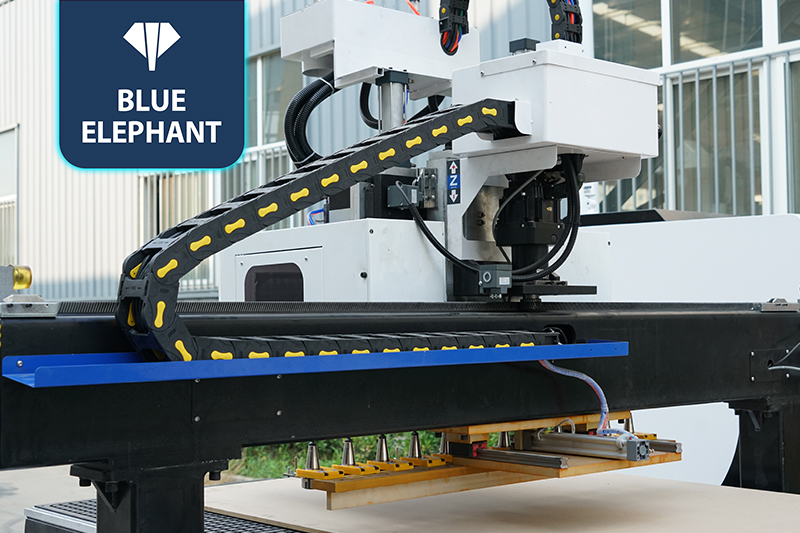

| Tool magazine | 12pcs linear tool changer, fix under the machine gantry |
| Spindle | Original Italy HSD spindle 9.6KW ATC spindle, ES951 model Original Italy HSD drill bank, 9pcs vertical |
| Dust collector | 1.5KW new type dust collector |
| Motor and drive | Japan YASKAWA servo system |
| Control system | Taiwan Syntec control system 60WE with MPG |
| Lubrication system | 1.5L Automatic oil lubrication system |
| vacuum pump | 7.5KW Tongyou brand |
| Reducer | Japan Shimpo reducer |
| Voltage | 220V 3phase 60HZ |
Application
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
