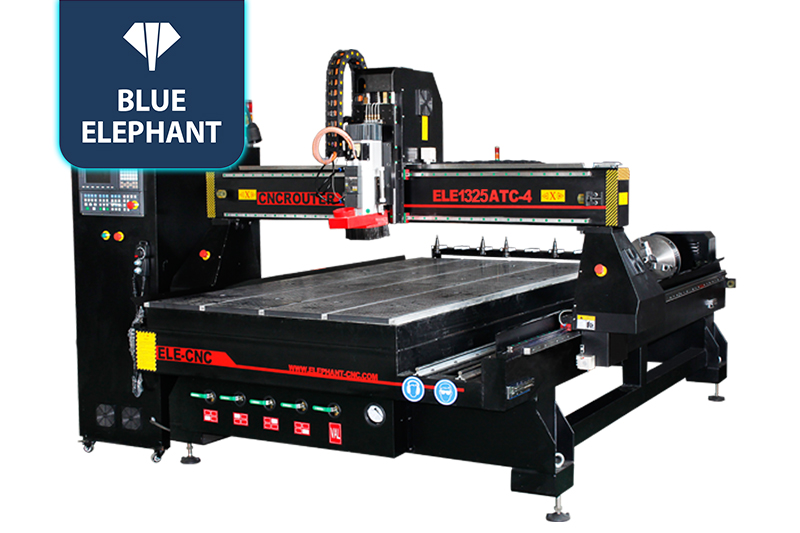

360° Engraving, 4×8 1325 ATC CNC Router With Rotary Device
☆This is a multifunctional ATC CNC machine that allows for 2D and 3D machining. In addition, its automatic tool change function reduces non-productive time and it is the ideal CNC router machine for small and medium-sized furniture manufacturers.
ATC CNC Router Machines Video
Features

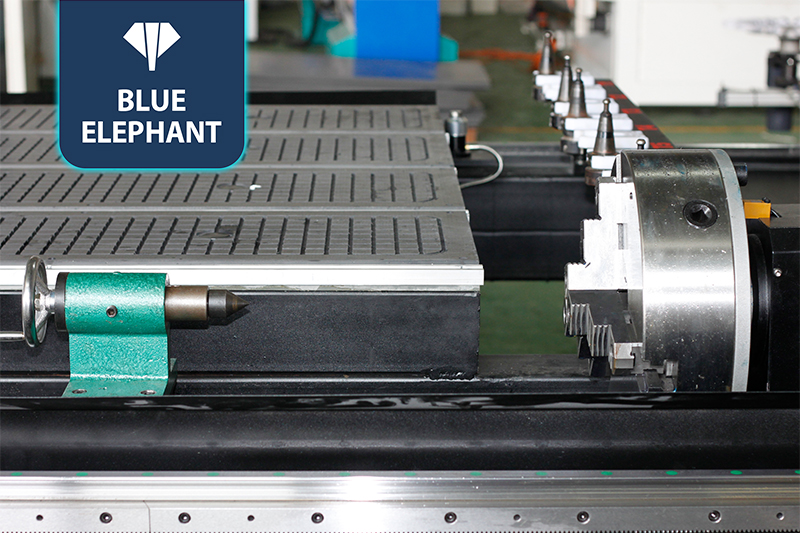

- This CNC router is equipped with a rotary device to process cylindrical materials such as table legs, chair legs, handrails, columns and uprights.
- The vacuum table has strong adsorption ability to prevent the panel from sliding or moving during operation.
- The specifications of this machine can be customized to meet different processing needs.
Parameters
| Model | ELECNC1325ATC-R |
| X, Y axis travel | 1300*2500*300mm, option: 1500*300mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |

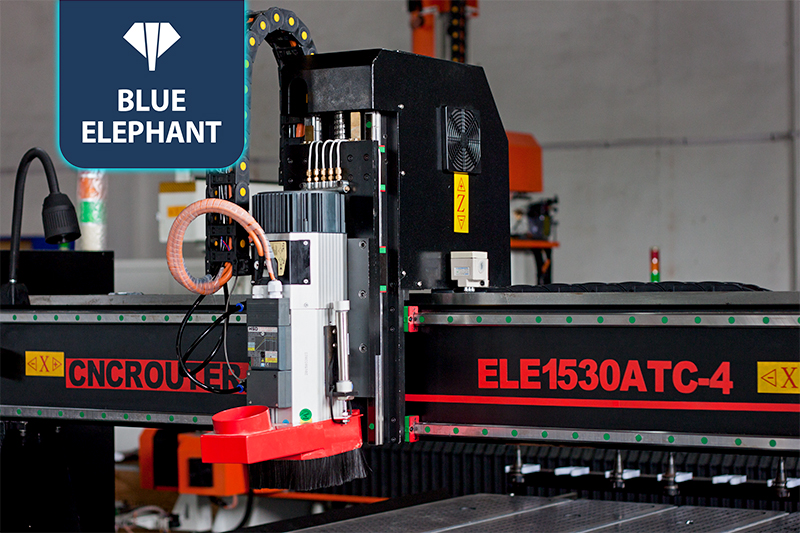

| Spindle type | 9kw HQD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Fuling inverter |

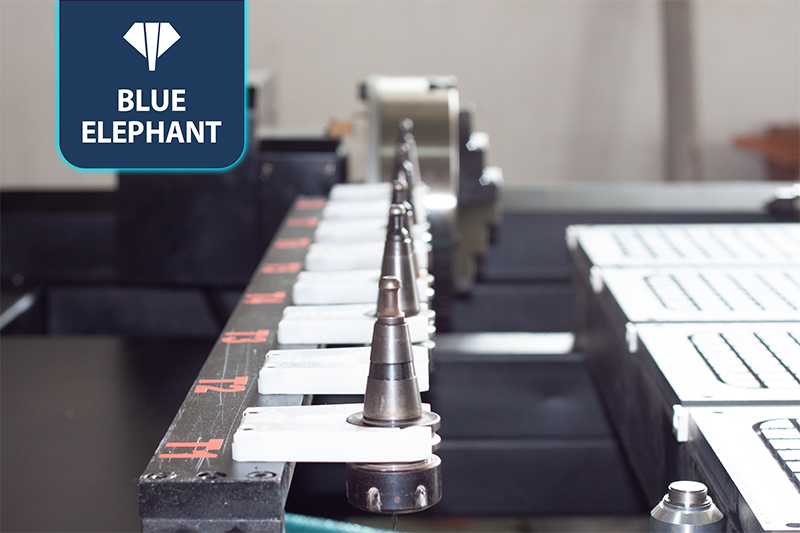

| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC 60WE |
| Driving system | 1000W Japan YASKAWA AC servo driver and 850W AC servo motor, 4 sets |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Rotary device | 200mm diameter rotary device |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application

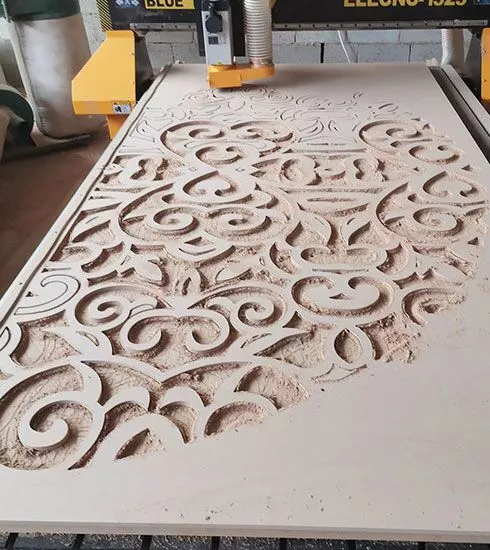

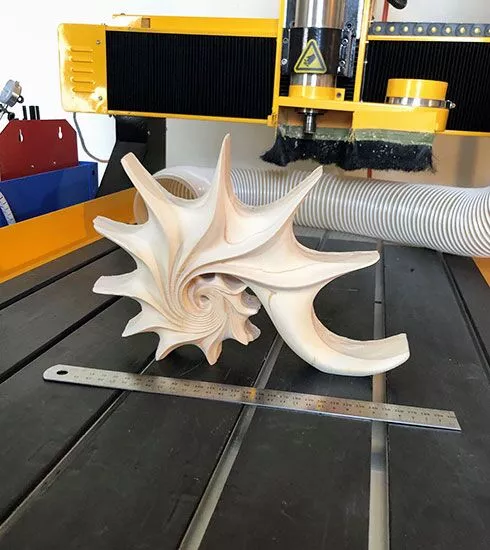

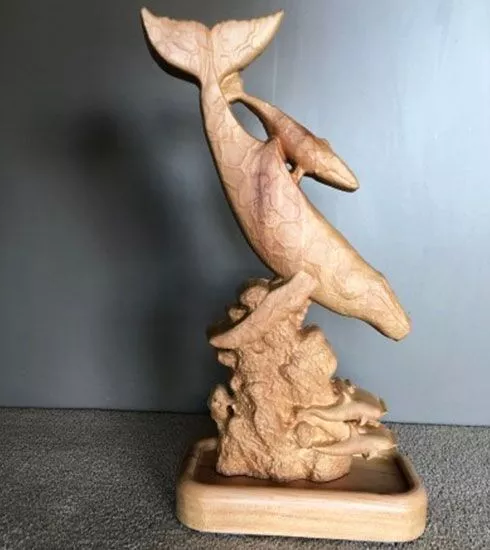

4 Axis CNC Router is suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
