Large Custom 3016 ATC Stone CNC Router for Price in Canada

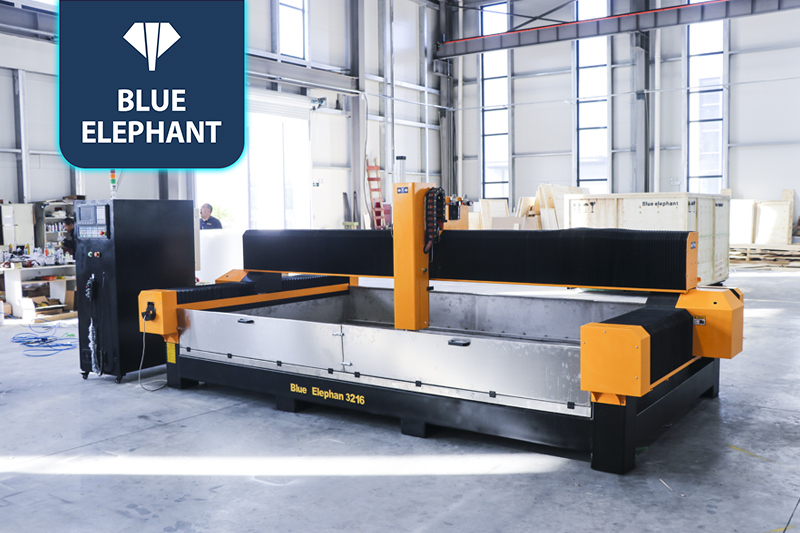

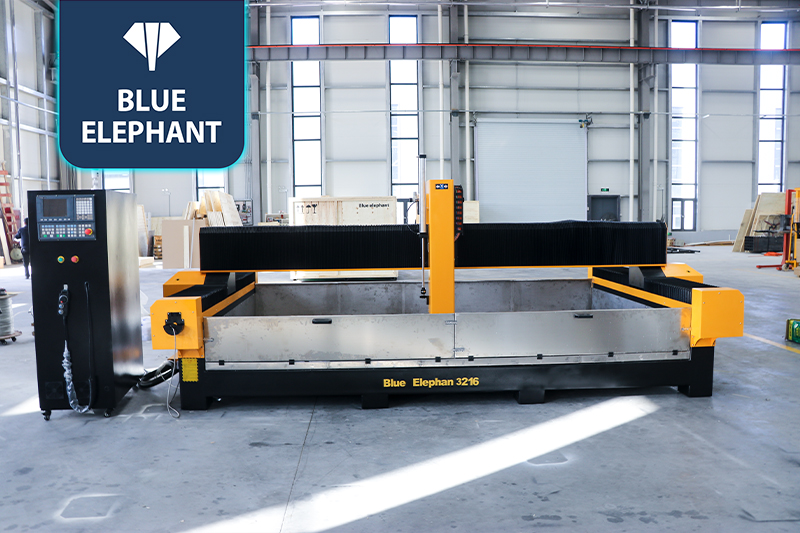

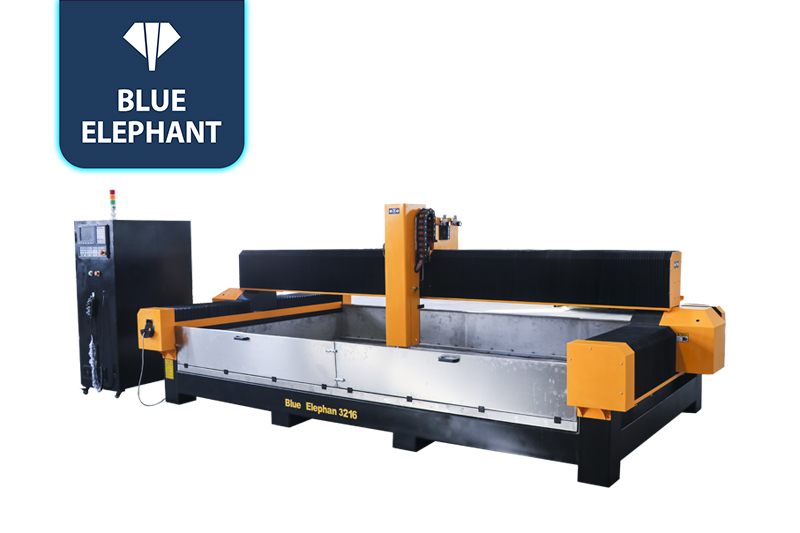

☆This is a special designed stone cnc machine equipped with a large worktable of 3000*1600mm. It is suitable for big manufacturing factories and customers needs large output.
Stone Engraving Machines Video
features

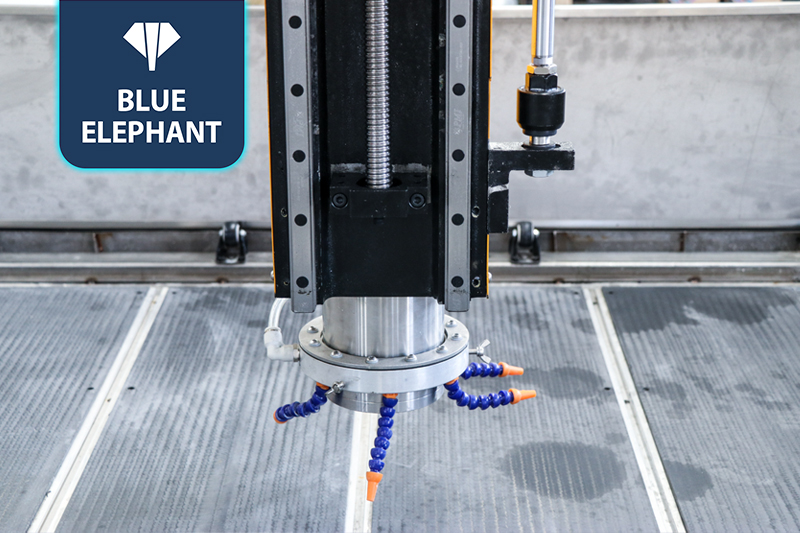

- Equipped with HQD water cooling spindle, it can reduce the noise during the machining.
- Manufactured with Japan Yaswaka servo motor and SHIMPO reducer, it is more stable and has a longer service life.
- 7.5kw Fuling inverter has stable performance, rich combination functions, good dynamic characteristics, and super overload capacity.
Parameters
| Items | Parameter |
| Working area | 3200*1600mm*400mm |
| Whole machine size | 600*900*160mm (optional) |
| Spindle | 7.5KW water cooling ATC spindle |
| Working table | T-slot working table with water flume |
| Motor and drive | 1000W Japan YASKAWA servo |
| Control system | Taiwan SYNTEC 6MB controller |
| Inverter | 7.5KW Fuling inverter |
| Lubrication system | Auto oil lubrication system |
| Reducer | Japan shimpo reducer |
| Cooling system | Water spraying cooling system |
Features
- Heavy duty machine structure can ensure higher stability during the stone carving process.
- This stone machine accessories are made of internationally renowned brands to ensure the machine has a long service life to the greatest extent, and it has always been the ideal choice for the stone processing industry.
- Automatic lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.
Application

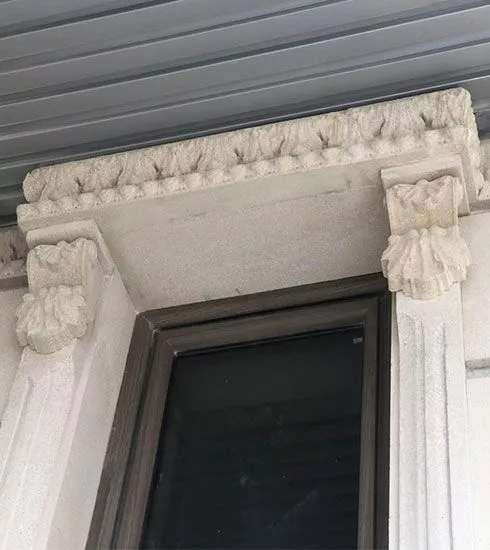

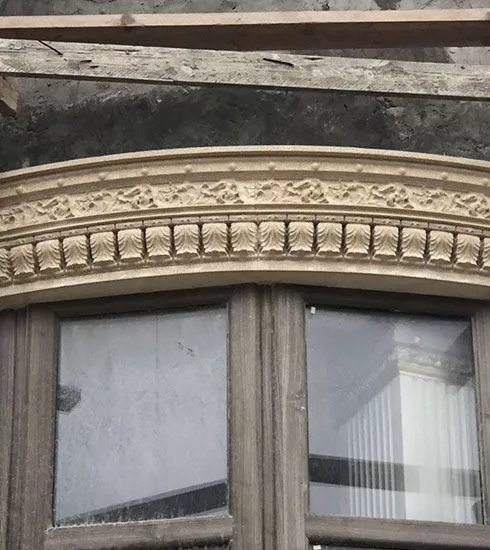

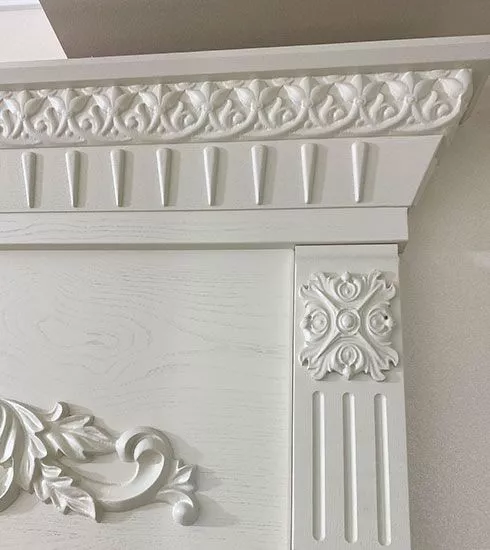

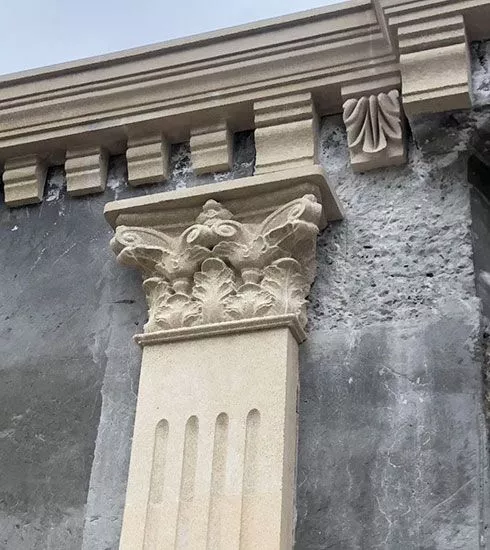

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
